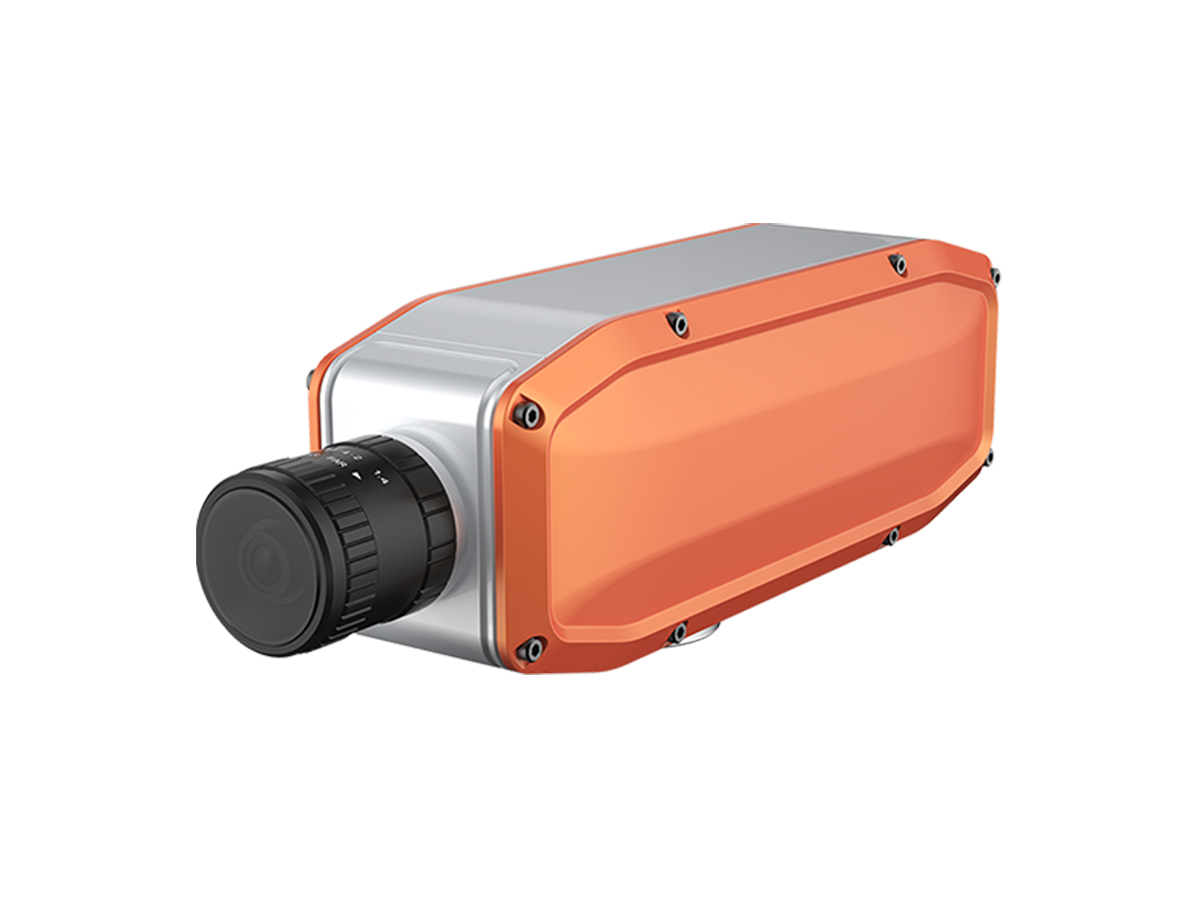

FigSpec® Series Hyperspectral Camera
The FigSpec® Series uses **high-transmittance optical design** to set a new standard for focusing ability. It features a spectral resolution of **2.5nm**, which is achievable up to **1.5nm** by adjusting the slit size (though this affects signal strength).
These cameras cover the **400–1000nm** range, utilize **push-broom imaging**, and offer up to **300 spectral channels**. Full spectrum acquisition runs at **128fps**, with speeds reaching **3300Hz** when using the **Band Selection (ROI)** function.
- ▶ Spectral Range: 400–1000nm (Visible/NIR)
- ▶ Wavelength Resolution: 2.5nm, up to 1.5nm
- ▶ Max Frame Rate: 128Hz (Full Spectrum), max 3300Hz (with ROI)
- ▶ Feature: Support Multi-region ROI for flexible analysis
- ▶ Application: Surface color/texture detection (printing, textile, industrial products)
Sohan Scientific Instruments & Technology
Innovative Detection Methods & Applications
Explore cutting-edge color detection, high-speed performance, and new application fields.

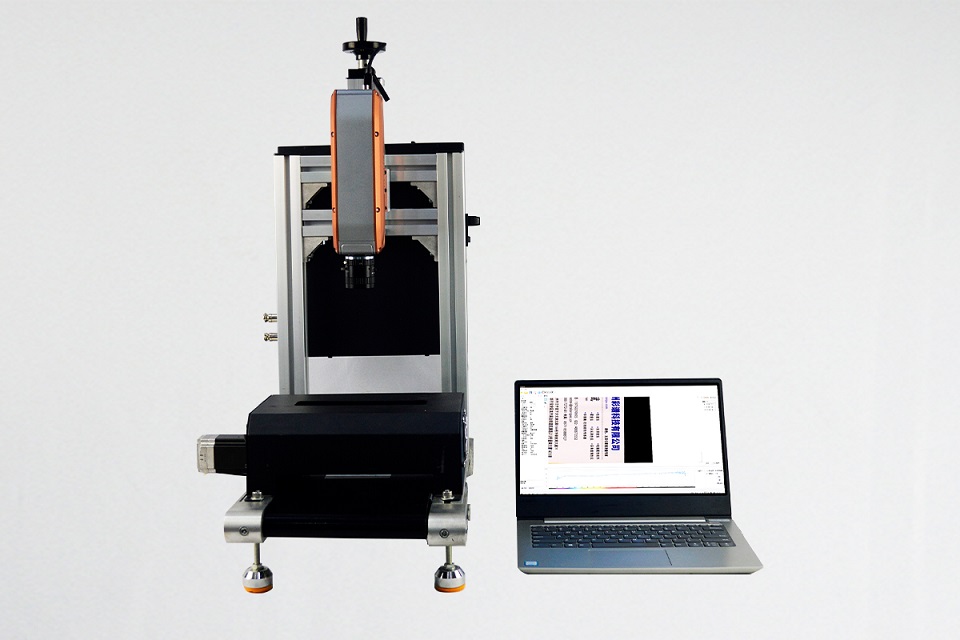

New Color Difference Detection Method
- Achieve precise surface **color and texture detection** for industrial products like printing and textile goods.
- Designed to be combined with a **special light source and control system** for enhanced accuracy.
- Unprecedented single-pixel repeatability of color measurement can reach **$\Delta E \approx 0.1$**.

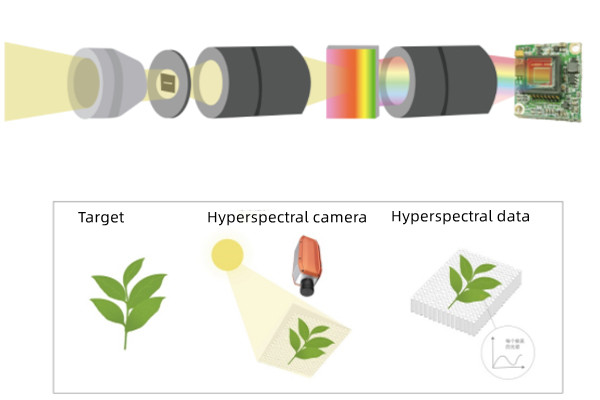

Superior Performance
- **Wide Spectral Coverage:** Available in 400-700nm (Visible) and 400-1000nm (Visible/NIR) ranges.
- **Fine Wavelength Resolution:** Default 2.5nm, adjustable to up to **1.5nm** for detailed spectral analysis.
- **High-Speed Imaging:** Frame rate up to **128Hz** for full spectrum, or an ultra-fast **3300Hz** when using ROI.
Explore New Detection Fields
- Core applications include **Machine Vision**, detailed color detection, and **Visible/Near-Infrared (NIR)** detection.
- Critical uses in industrial automation, such as **drug composition analysis** and **plastic sorting/recycling**.
- Essential tool for **food quality control**, **agriculture**, and advanced **hyperspectral imaging solutions**.
Technical Parameters – FigSpec® Series
| Technical Parameter | FS-10 | FS-11 | FS-12 | FS-13 |
|---|---|---|---|---|
| Lighting mode | Passive lighting (excluding light source) | |||
| Spectroscopic mode | Grating | |||
| Spectral range | 400–700nm | — | — | 400–1000nm |
| Spectral band | 150 | — | — | 300 |
| Spectral resolution | 2.5nm | |||
| Slit width | 30$\mu m$ | |||
| Transmission efficiency | $>50\%$ | — | — | $>60\%$ |
| Stray light | $<0.5\%$< /td> | |||
| Number of spatial pixels | 1920 max (software settable) | |||
| Pixel size | 5.86$\mu m$ | |||
| Imaging speed | Full band 41Hz, 390Hz after ROI |
Full band 128Hz, 3300Hz after ROI |
Full band 41Hz, 390Hz after ROI |
Full band 128Hz, 3300Hz after ROI |
| Detector | CMOS | |||
| SNR (Peak) | 600:1 | |||
| Camera output | USB3.0 | |||
| Camera interface | USB3.0 transmission line | |||
| Parts | C Mount | |||
| ROI | Single area | Multiple areas | Single area | Multiple areas |
