Product Details
FS-50 Hyperspectral Imaging Camera
The **Near Infrared Hyperspectral Camera FS-50** adopts a high-transmittance optical design, elevating the near-infrared detection capability to a new standard. It offers deep spectral analysis across a wide range for precise material characterization.
- Spectral Resolution: Better than **3.5 Nm** (adjustable via slit).
- Acquisition Speed: Full spectrum up to **128 fps**, higher with Band Selection (ROI).
- Spectral Coverage: 128-900 near-infrared scanning cameras.
This product is proudly provided by **Sohan Scientific Instruments and Technology**.
Technical Specifications
- Spectral Range 900–1700nm
- Wavelength Resolution Up to 2.5nm (or 1.5nm)
- Weight Approx. 2kg
- Size (Excl. Lens) 310mm × 60MM × 65mm

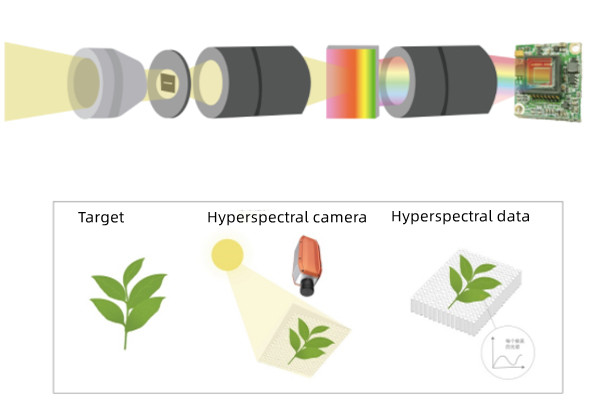

Exceptional Wavelength Precision
- → **High Resolution**: Spectral range from **900–1700nm** with a wavelength resolution as fine as 1.5nm (adjustable).
- → **High Frame Rate**: Capable of **128 fps** full spectrum acquisition, ensuring high throughput for dynamic applications.
- → **Custom Optimization**: Slit size can be adjusted to balance spectral resolution and signal strength, offering flexibility in measurement.
*Note: Achieving higher spectral resolution (e.g., 1.5nm) may necessitate changes to the slit size, which can influence signal intensity.*
Versatile Application Areas
The FS-50 unlocks potential in diverse sectors through non-destructive, detailed spectral analysis.
- • **Industrial QC:** Machine vision, plastic sorting.
- • **Product Inspection:** Food quality and safety control.
- • **Research:** Drug composition analysis, general HSI solutions.
- • **Remote Sensing:** Agriculture, integration with UAVs (Drones).
Technical Specifications Overview
| # | Index | Value |
|---|---|---|
| 1 | Spectral range | 900-1700nm |
| 2 | Spectral resolution | Better than 3.5Nm |
| 3 | Detector | CMOS |
| 4 | Detector interface | Camera Link |
| 5 | Detector power supply | 12V DC |
| 6 | Detector target size | 9.6mm x 7.68mm |
| 7 | Detector original resolution | 320×256 |
| 8 | Detector original pixel size | 30 μm ×30 μm |
| 9 | Pixel bit depth | 16 bits |
| 10 | Slit length | 9.6mm |
| 11 | Slit width | 30μm |
| 12 | Recommended pixel merging method | 2x2 |
| 13 | Number of effective pixels in spatial dimension | 160 |
| 14 | Number of bands | 128 |
| 15 | Field angle (FOV) | 15.6°@f=35mm |
| 16 | Instantaneous field angle (IFOV) | 0.71mrad@f=35mm |
| 17 | Frame rate | 344fps |
| 18 | Size | About 310mm * 60MM * 65mm (excluding lens) |
| 19 | Weight | About 2kg |
| 20 | Working temperature | 0 - 50℃ |
| 21 | Storage temperature | -25~60℃ |
| 22 | Interface | CS-Mount |
- 1. Spectral range 900-1700nm
- 2. Spectral resolution Better than 3.5Nm
- 3. Detector CMOS
- 4. Detector interface Camera Link
- 5. Detector power supply 12V DC
- 7. Detector resolution 320×256
- 9. Pixel bit depth 16 bits
- 14. Number of bands 128
- 17. Frame rate 344fps
- 19. Weight About 2kg
- 20. Working temperature 0 - 50℃
- 22. Interface CS-Mount
*For full specification details, please refer to the desktop view or downloadable
literature.
Sohan Scientific Instruments & Technology Related Products

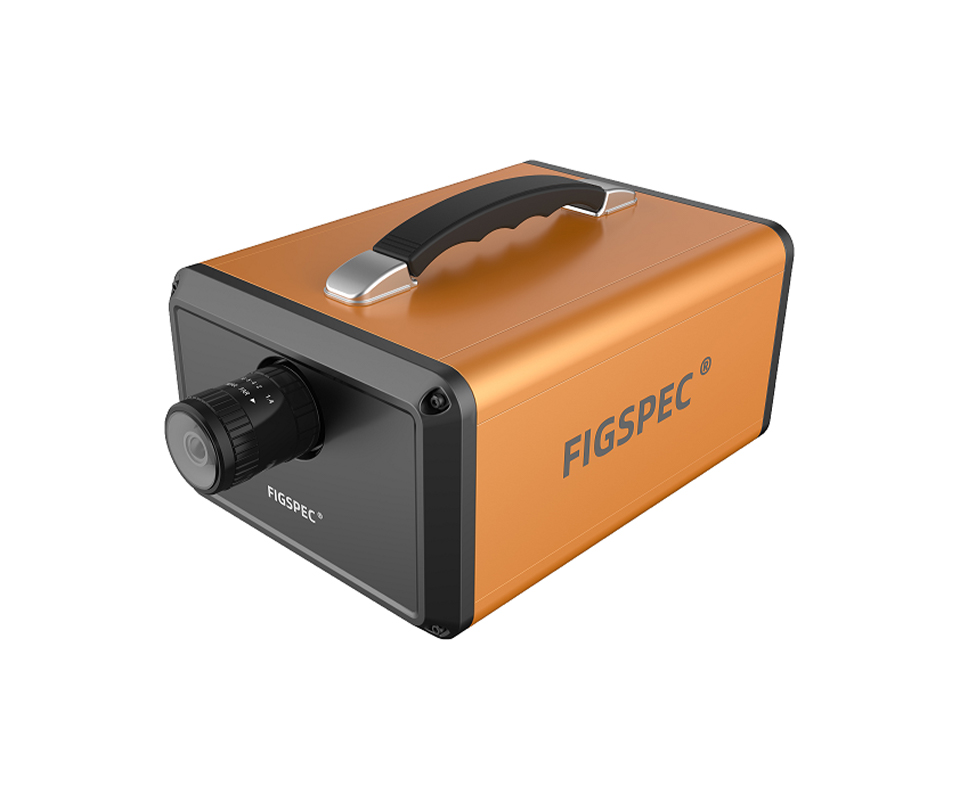

FigSpec® FS-20 Series Portable
