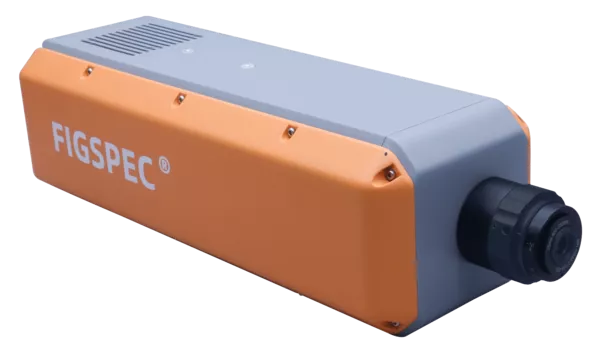

FigSpec® Series Hyperspectral Cameras
FigSpec® Series hyperspectral cameras adopt high transmittance optical design, which sets a new standard for focusing ability.
The spectral resolution is **2.5nm**, up to **1.5nm** (by changing the slit size, balancing resolution with signal strength). They cover **400–1000nm** and use push broom imaging with up to **300 spectral channels**.
The full spectrum acquisition speed can reach **128fps**, and with the **Band Selection (ROI)** function, it can achieve a much higher speed.
- ✓ Spectral range: 400–1000nm
- ✓ Wavelength resolution up to 2.5nm and max 1.5nm
- ✓ All optical spectrum acquisition can reach 128Hz, max 3300Hz after ROI
- ✓ Visible / near infrared detection hyperspectral solution
Provided by: Sohan Scientific Instruments and Technology

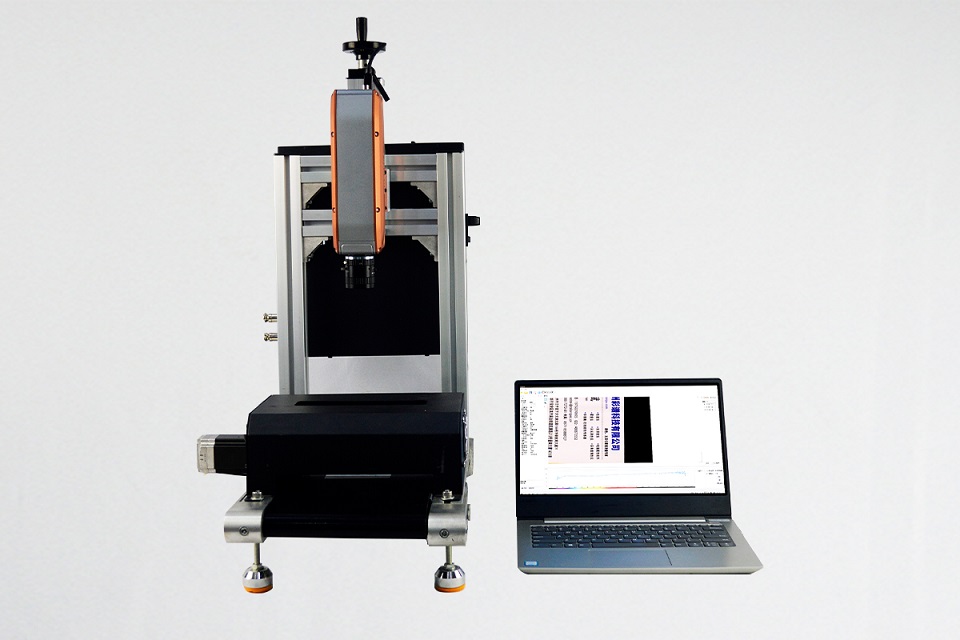

New Color Difference Detection Method
The surface color and texture detection of various industrial products such as printing and textile, combined with special light source and control system, allows for high-precision measurement.
The single pixel repeatability of color measurement can reach: ΔE < 0.1
Superior Performance Metrics
- ▶ **Spectral Range:** 400–700nm and 400–1000nm options.
- ▶ **Wavelength Resolution:** Standard 2.5nm, up to 1.5nm (trade-off with signal strength).
- ▶ **Frame Rate:** All optical spectrum acquisition up to 128Hz, reaching **3300Hz** after ROI.
Explore New Detection Fields
The versatility of the FigSpec® camera opens doors to critical analysis across multiple industries.
- ● Machine vision, color detection
- ● Visible / near infrared detection
- ● Drug composition analysis
- ● Plastic sorting
- ● Food quality control
- ● Agriculture / Remote Sensing
- ● UAV Hyperspectral solutions
Technical Parameters
| Name | FS-10 | FS-11 | FS-12 | FS-13 |
|---|---|---|---|---|
| Lighting mode | Passive lighting (excluding light source) | |||
| Spectroscopic mode | Grating | |||
| Spectral range | 400–700nm | 400–1000nm | ||
| Spectral band | 150 | 300 | ||
| Spectral resolution | 2.5nm | |||
| Slit width | 30μm | |||
| Transmission efficiency | > 50% | > 60% | ||
| Stray light | < 0.5% | |||
| Number of spatial pixels | 1920 max (software settable) | |||
| Pixel size | 5.86μm | |||
| Imaging speed | Full band 41Hz, 390Hz after ROI |
Full band 128Hz, 3300Hz after ROI |
Full band 41Hz, 390Hz after ROI |
Full band 128Hz, 3300Hz after ROI |
| Detector | CMOS | |||
| SNR (Peak) | 600/1 | |||
| Camera output | USB 3.0 | |||
| Camera interface | C-Mount | |||
| Parts | USB 3.0 transmission line | |||
| ROI | Single area | Multiple areas | Single area | Multiple areas |
